FLEX-8EX-01-110-2T ENRANGE Wireless Radio Remote Control System (2) Transmitters & (1) Receiver 4 Motions - All 2 Speed Complete Installation Instructions Included

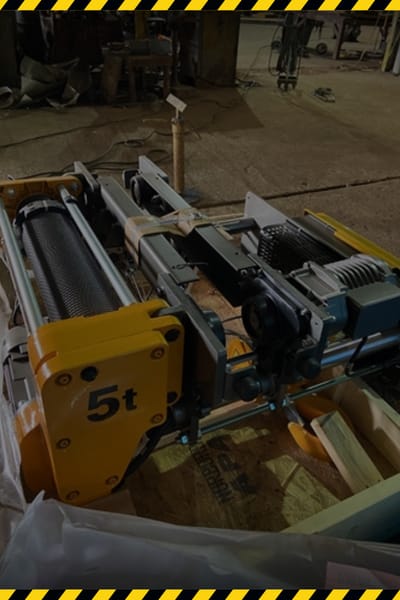

CURRENTLY "IN STOCK" Brand new Harrington Electric Wire Rope Hoist, 5 Ton Capacity, 33' lift @ 26/4.3 fpm, 460V-3Ph-60Hz, Motorized Trolley @ 66/11 fpm, less pendant.
David Round RailRunner Tractor Drive, Model F-5, 10,000 lbs. Capacity, Speeds from 40 to 210 fpm (specify when ordering), 230/460V-3Ph-60Hz, less pendant. Trolley wheels fit 3.00" to 8.06", 3/4 HP Motor, H-4 Duty, Controls include Contactor, Thermal Overload Relay and control transformer.
Crane Lights Cast aluminum spring loaded socket and reflector support provides a reliable indoor crane light for 250 DC Mercury Vapor and AC HPS lamps. The highly polished reflector gives a medium beam spread. For additional protection against shock and vibration, include one of the shock mounts illustrated below.
The 250 DC Mercury Vapor fixture & lamp combination utilizes a current limiting resistor for operation of a mercury vapor lamp on 250 DC input voltage. This resistor acts as a special ballast for 250 DC and is intended for overhead crane applications only, not for general illumination.
87047 Translube Wheel Flange Lubrications Stick Holders. Attaches with mounting brackets to wheel endtrucks. Eliminates wheel flange wear by lubricating the wheel flange. Solid lube sticks are spring loaded to apply even pressure on flange surface. Lube sticks are sold separately.
United Crane Cab Seat - Pt.#SS-SA19700.901, Heavy Duty mechanical suspension with shock damper, 4 in. stroke, Mid Height seat back profile, Adjustable lumbar support, seat belt anchorage to ISO 6683 & SAE J386, double locking slide rails. Operator weight 110 to 290 lbs.
CAPDECAL Machinery Capacity Labels - Decal. Commonly used for Overhead Cranes and Hoist load capacity markings. 8" x 13" Sticks to metal, plastic, glass and all painted surfaces. Made of Vinyl material. Specify the capacity needed when ordering.
United Crane Cab Seat - Pt.#KAB-87514, Mechanical suspension with shock damper, 2 in. stroke, Low seat back profile, Full range backrest recline, Heavy Duty double locking slide rails, Black waterproof vinyl trim. weight range is 110 to 270 Lbs.
L8-S-2M Ductowire L series - 8 button pendant - (6) 2 Speed Buttons with Maintained On/Off Buttons. Includes legend plates Multi-step cord grip, strain relief hook and boots.
5 Ton Capacity Endtrucks. For heavy-duty class “C” single girder crane applications. End truck kits include: two trucks; two sealed, totally enclosed, non-ventilated (TENV) motors with adjustable D.C. brakes; two helical gear reducers; rubber bumpers; and bridge beam fastener set. All trucks are fully painted. Also included are complete fabrication prints.
MSM1A Micro-Speed® Smart-Move® For 1/2 HP @ 480 Volts, series A.C. variable speed drives for Bridge-Trolley-Monorail use, Hoists with internal Load Brakes, and self-locking worm drive hoists.
Feature lightweight polyester webbing with sub-pelvic straps for added support. Sliding back D-ring with D-ring pad provides added comfort. Pull-free lanyard ring allows user to attach lanyard when not in use. Fall indicators signal when unit must be removed from service. Meets OSHA, ANSI, and CSA standards Tensile strength: 6000 lb. Capacity: 400 lb.
Danfos Heavy Duty Load Limiter, Pt.#LC1-2S, Ranges from 220lbs. min. to 2755 lbs max. Contains 2 easily adjusted contacts. This load limiter can be preset at the factory or can be custom set in the field by your maintenance personnel. Example of application: Can be installed on a 4 part reeved - 5 ton hoist. Secured to 1 line of cable and set to 2500 lbs. When hoist is loaded to 10,000 lbs or more... a contact will open, cutting out the up circuitry and allowing the down function to operate. This load cell also has an additional contact that can be used to operate a horn or warning device when overload is tripped. This product will increase the life of your lifting device and will create a safer environment for the operator.
Open Gear Lubricant, Great for Pinion gears in Heavy Duty Applications. Size/Net Weight 1 Gal. Jug, Temp Range -25 to 350 F, Flash Point 430 F, VOC Content 260g/L, Specific Gravity 1.1, Film Type Paste, Black Color, Contains An Additive for Extreme Pressure, Resists Heat and Pressure, Moisture Resistant, Displaces Water, For the Railroad Industry: Open gears, Chains, Cables, Wire ropes, Fifth Wheel of Tractors, Trucks, Leaf Springs, Drive Chain, Petroleum Oil Base
Mondel Brake Assy. designed for Heavy Duty Service. For applications needing 300 to 500 ft. lbs. of braking torque, 460/3Ph/60Hz, Includes 16"OBW Brake Wheel (Unbored)
Weighted Upper Limit Switch Assy. Heavy Duty housing with attaching eye bolt and chained weight. Easily installs to maintain a safe upper limit controlled stop. Weighted limit splits in half to allow easy installation without removing cable. Housing bolts with 4 attachment locations.
LLL-18 Load Cell for Wire Rope Hoists. Easily attaches directly to wire rope cable and is adjustable to fine tune capacity allowable before up circuitry is disabled. Allows protection of hoist by disabling excessive loads. This load cell is good for up to 3300 lbs. per line. Example: Control of a 1 to 1.5 Ton application at single part reeving or 5 Ton with 4 part reeving. Can be factory set or field adjusted for custom settings. For larger or different capacities call 888-791-9686 for assistance.
Crane Cab Heater w/ switch Natural convection heaters are ideal for heating crane cabs, guard houses and other normally unheated areas. All heaters feature heavy-duty wirewound heating elements mounted in a rugged galvanized steel enclosure with perforated cover. All units are suitable for floor or wall mounting and have convenient knockouts for permanent conduit installation. Heavy-duty DC rated switches are also available for on/off or multiple heat settings.
Premium Efficiency AC induction motor, general purpose, 20 hp, 3-phase, 208-230/460V, 1800 RPM, TEFC, 256T frame, 1-5/8 (1.625) inch diameter shaft, cast iron, Class F insulation, NEMA design A, electrically reversible, cast iron mounting feet, cast iron junction box, steel fan cover, 10:1 variable torque rating, 4:1 constant torque rating
Air Tool Lubricant, Type ISO 32, Size 1 Gallon, Temp Range -20 to 230 F, Flash Point 446 F, VOC Content 0%, Specific Gravity 0.878, Film Type oily, Biodegradable, Cleans and Prevents Corrosion, Compatible with Most Air Tool Elastomers, No VOCs, Nonflammable, For Rotary and Reciprocating Air Tools, Chipping Hammers, Impact Wrenches, Air Motors, Grinders, Reamers, Drills, Natural Ester Vegetable Oil Base, ASTM D-5864 Pw1, USDA BioPreferred Program, USDA Food Grade H1
Power Electronics M746CX R746T Regen Braking Resistors for use with M746CX VFD, Not needed for hoisting with weston load brakes. Will be required for Bridge and Trolley functions
FLEX4EX2-09-2TEnrange Wireless Radio Remote Control System (2) Transmitters & (1) Receiver 2 Motions - 2 Speed Complete Installation Instructions Included
